Zhongtuo Roll Forming Machinery Co., ltd

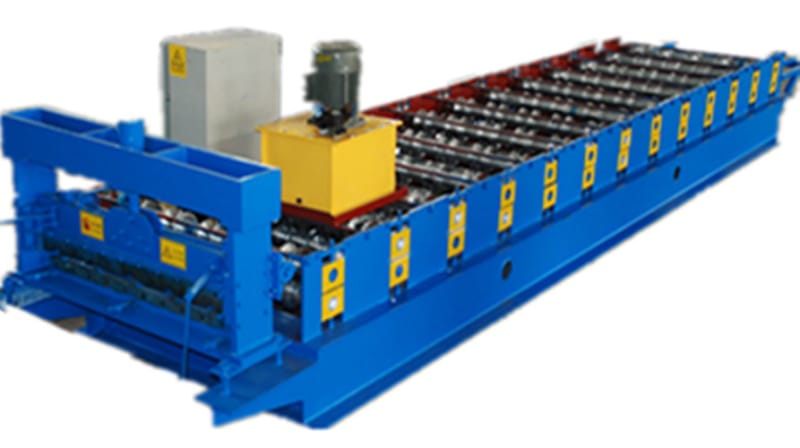

Russia Exterior Wall Cladding Roll Forming Machine
Russia Exterior Wall Cladding Roll Forming Machine
Russia Exterior Wall Cladding Roll Forming Machine
Russia Exterior Wall Cladding Roll Forming Machine
Russia Exterior Wall Cladding Roll Forming Machine

Russia Exterior Wall Cladding Roll Forming Machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description



Popular Design in Russia Exterior Wall Cladding Roll Forming Machine

Popular Design in Russia Exterior Wall Cladding Panel Roll Forming Machine could be used to make popular cladding wall panel in batch and fully automatic. The machine working speed could reach 25m/min.

1


2


Features of Popular Design in Russia Exterior Wall Cladding Roll Forming Machine:

1.The machine can do the punching the shap rolling forming together.

2.Punching could be done accurately and then it is easy for installation.

3.The machine does the rolling in the same height to make sure the 100% perfect shape.

4.Wall cladding panel is easy to install and do the connection.

Popular Design in Russia Exterior Wall Cladding Roll Forming Machine pictures for your reference:

3



4


Here is the Popular Design in Russia Exterior Wall Cladding Roll Forming Machine parameters for your reference:

Forming machine

a. Number of forming steps: 16 stations
b. Shaft material: 45# steel with quenched treatment, precision machined, Outer diameter:50mm

c. Roller material: bearing steel with quenched treatment

d. Transport: by gear

e. Forming speed:15m/min

f.Motor:7.5kw

g.Voltage:380v,50Hz,3 phase or customize according to customer needs:
h. Structure: independent stand

3). Control system
5.7 touch screen 5.5kw

Automatic tracking cutting

Base frame: 5.5*1.2*0.65

Control station:Taida PLC

Hydraulic station: 3kw

Oil pump: 63*80*80

Cooling device:35Hz

Encoder:600

tachometric wheel Mold Mulfan1
Guide: HG35-2000

Slider: HGH35cA

Coupling :1 set

FAQ:

1.Does one Popular Design in Russia Exterior Wall Cladding Roll Forming Machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Popular Design in Russia Exterior Wall Cladding Roll Forming Machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.

xzz







Looking for ideal Russia Exterior Wall Cladding Panel Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Popular Design in Russia are quality guaranteed. We are China Origin Factory of High Quality Line. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Roof and Wall Panel Roll Forming Machine
