Zhongtuo Roll Forming Machinery Co., ltd

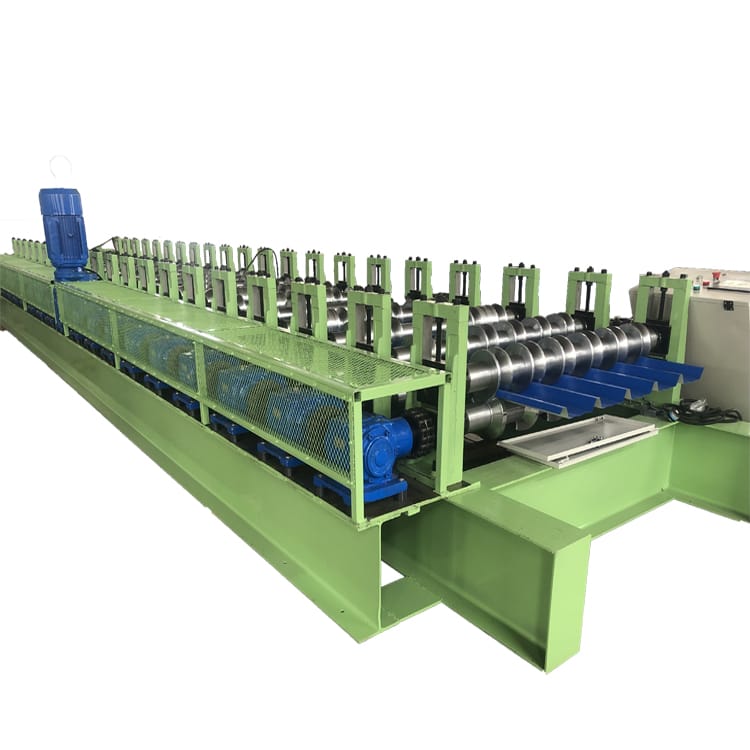

High Speed Color Steel Roof Making Machine
High Speed Color Steel Roof Making Machine
High Speed Color Steel Roof Making Machine
High Speed Color Steel Roof Making Machine
High Speed Color Steel Roof Making Machine

High Speed Color Steel Roof Making Machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

High Speed Color Steel Roof Making Machine 35 meter per minute


Color steel roofing sheet is a color coated steel plate or galvanized steel plate by rolling cold bending molding plate, widely used in industrial buildings, such as factories, warehouses, garage, hangar, gymnasium, exhibition hall, theater and another surface of the rooms, wall, and fence. As the manufacture of the High Speed Color Steel Roof Making Machine 35 meter per minute Zhongtuo does hope that we can give the customers high efficiency equipment.

Normally for the roofing sheet, the thickness could be from 0.2 to 0.8mm, the coil width depends, we can customize according to the customer requirements.

Take the following drawing profile for example to show you how the High Speed Color Steel Roof Making Machine 35 meter per minute works:

1



High Speed Color Steel Roof Making Machine 35 meter per minute machine designed:

2



The High Speed Color Steel Roof Making Machine 35 meter per minute is composed by the following elements

5Ton hydraulic Decoiler high speed also 1set
Main Machine for roll forming 1set
Control System(PLC) 1set
Cutting System 1set
Output Table 1set

Main Machine for roll forming High Speed Color Steel Roof Making Machine 35 meter per minute
Production mode: automatic roll forming
The width of the feeding material: 1000-1250mm
The thickness of the plate: 0.4mm-1.2mm
Rollers:21
Shaft diameter after processing:
80mm
The power of the main motor:5.5kw
Scissor material: Cr12Mov, herd steel HRC 58-62°C
Gr12 The material of the back cutting machine: Gr12
The material of the roller:45#steel
The material of the forming shaft: 45# steel
Length tolerance:±1.5mm
Voltage:380V,50HZ,3 phase(adjustable by customer needs)
Production capability:10m-12m/min
The material of the big shelf: 350H steel
The size of the whole machine: 7500*1800mm*1400mm
The weight of the whole machine: about 5.7Tons

Control System(PLC) of High Speed Color Steel Roof Making Machine 35 meter per minute
The Brand of PLC:

Panasonic or Mitsubishi -to ensure the high speed, stability, precision and long lifetime. If you need, we can change it to other brand or another little computer for you.
The Advantages of PLC:

1.The smoothness when the machine starts and stops.
2.There is no slipping or the sharp tension of the chains;
3.There is no the breakdown of the electrical circuit caused by the starting electricity.
4.The long-term operation and the durability of the machine.
5.The normal and high-efficiency operation of the machine.
6.The precision of cutting. The error of 6m panel is 1mm.

Here are more pictures of High Speed Color Steel Roof Making Machine 35 meter per minute for your reference:

3

Competitive Advantage of High Speed Color Steel Roof Making Machine

1. Good service, we can give 24/7 service.

2. Easy installation, as you just need to connect the electricity and then you can use, no need to do other complicated connection.

3. Short delivery time

4. Professional design team

5. Easy to use


FAQ:

1.Does one High Speed Color Steel Roof Making Machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal High Speed Color Steel Roof Making Machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
