Zhongtuo Roll Forming Machinery Co., ltd

rock wool sandwich sheet production line
rock wool sandwich sheet production line
rock wool sandwich sheet production line
rock wool sandwich sheet production line

rock wool sandwich sheet production line

Unit Price: USD 230000 - 480000 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 90 Days

Contact Now

Basic Info

    Model No.: ZT-005-16

Additional Info

    Packaging: as customer requirem

    Productivity: 2-8m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 10set/month

    Certificate: CE, ISO9001

Product Description

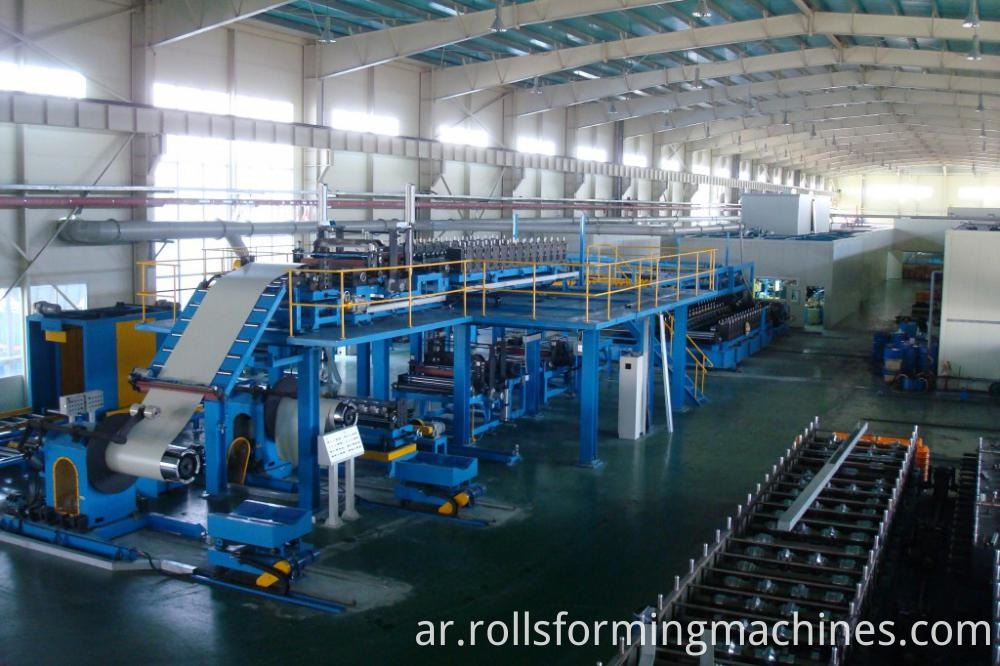

rock wool sandwich sheet production line

Rock wool sandwich sheet production line including unwinding, before cutting, film, beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automaticcontrol system, userfriendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.

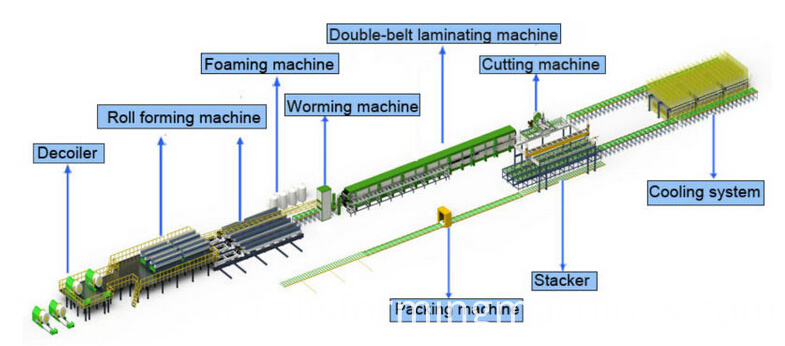

rockwool sandwich board production line production Process:


(The upper)Dncoiler ---Cutting ---Film---Beading---Roll forming \


--Rock wool delivery--Glue--Sealing side foam-- laminating machine with Foam,Solidify,Roll forming--Cutting --Run-out table


(Lower part)Uncoiler ---Cutting →Film→Beading→Roll forming /

rock wool sandwich sheet production line


Parameters of Sandwich Panel Roll Forming Machine :

Raw material

  • Coil thickness:0.4~0.6mm
  • Coil weight:Max 5T
  • Coil width: Max 1250mm
  • Coil inner diameter:ø508mm

Un-coiler

  • Bear weight:5T
  • Mandrel expansion :465 – 515 mm

Laminating machine

  • PVC coil outer diameter:300mm
  • PVC coil inner diameter:70-82mm
  • Maximum coil width:1250mm

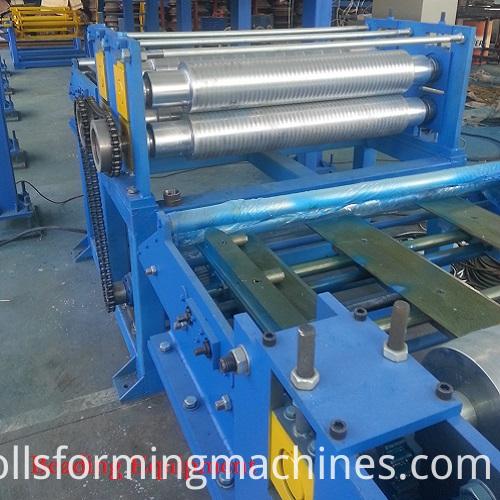

Beading Equipment

  • Speed:10m/min
  • Power:2.2kw or according to the profile
  • Power supply:motor
  • Material of roller:l 40Cr quenched and tempered, chrome

Roll forming

  • Frame:Cantilever structure
  • Speed:10m/min
  • Power:4kw up, 7.5kw down
  • Shaft diameter:50 mm
  • Distance roller head:350mm
  • Rollers: 11 up, 18 down

Rock wool delivery device

  • Motor Power:2*1.5Kw
  • Speed:8m/min
  • The maximum transport width:1200mm
  • Dispensing Systems
  • Effective volume:150L
  • Unit motor power:10KW

Roll Forming Machine

  • Length:10mm
  • Width:1200mm
  • Lifting speed:200mm/min
  • Drive motor power:2.2Kw*4
  • Lifting motor power:1.5Kw*4

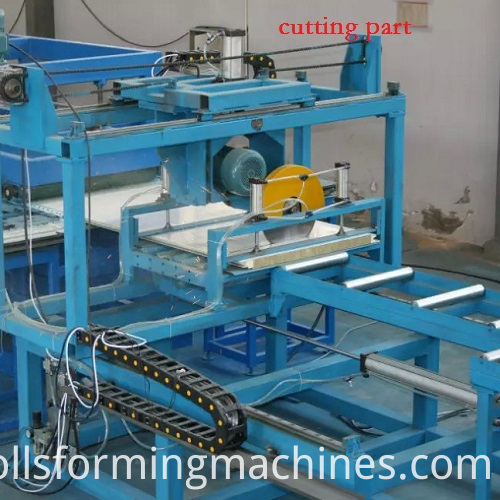

Cutting part

  • Cutting motor power:7.5Kw
  • Lateral movement motor power:1.1 KW
  • Traversing speed:150 mm/s
  • Cutting width:1300 mm
  • Cutting error:±2mm

Details of rockwool sandwich board production line :

Sandwich Panel machine

rock wool sandwich panel making machine

Sandwich Roof Roll Forming machine

rockwool sandwich board production line


Sandwich Panel machine

Looking for ideal Rock Wool Sandwich Panel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rock Wool Sandwich Panel Making Machine are quality guaranteed. We are China Origin Factory of Sandwich Panel Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Sandwich Panel Roll Forming Machine
